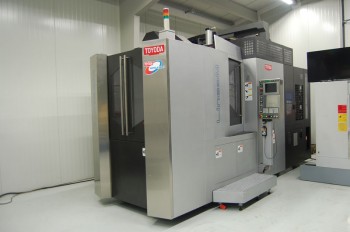

Toyoda LineamIII (12.178MM)

Specifications

Besturing Meldas M650
Opname HSK-A63
Dwarsverplaatsing (mm) 630
Verticale verplaatsing (mm) 700
Langsverplaatsing (mm) 630
Tafelafmeting (mm) 450 x 450 cm
Tafelbelasting 400 kg
kW 30



FEED RATE

Rapid  feed rate X,Y                                                                  120 m/min

Rapid feed rate Z                                                                       60 m/min

Rapid feed rate B                                                                       120 m/min

Cutting feed rate X,Y,Z                                                          0,1 – 60 m/min



SPINDLE

RPM spindle                                                                                  300 – 20.000 min-1

Spindle taper                                                                               HSK-A63

Coolant                                                                                            Through spindle



ATC

Tool holder                                                                                    Special HSK-A63   2 Face contact tool

Tool magazine storage                                                          40 pcs

Tool change time                                                                       2,5 sec.
